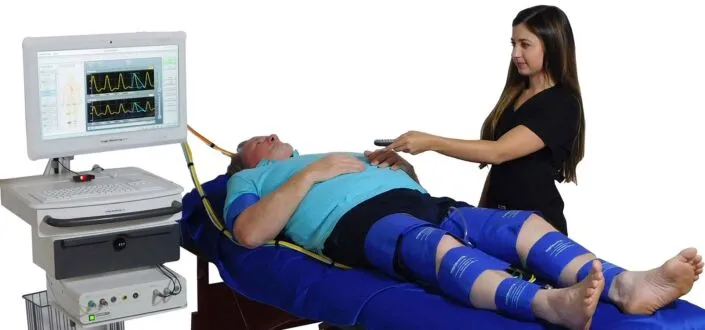

The IMUSA FALCON PRO is the world’s most advanced high-end peripheral vascular diagnostic system. It is the ideal system for any vascular/angiology laboratory and as an upgrade to existing old equipment.

[custom_slider]

Image Monitoring USA offers a versatile yet user-friendly peripheral vascular testing equipment so that our inexperienced, seasoned, and daily routine customers can use it with ease. Our team of experienced service technicians and Application support staff provide solutions to all your Falcon physiologic modalities and technological issues.

IMIUSA Falcon PRO Selected Features

The IMIUSA FALCON PRO supports numerous standard and new unique features for the benefit of the medical staff and patients alike:
  • Simultaneous measurements of up to 10 PVR channels
  • Quality control of blood pressure measurements
  • Simultaneous measurements of up to 5 PPG channels
  • Simultaneous ABI measurements
  • Simultaneous Raynaud’s Diagnosis
  • 10 MHz Doppler probe
  • Enhanced measurements of blood pressure with PPG
  • Integrated temperature sensor, ideal for diagnosis of the Raynaud’s syndrome
  • Unlimited user defined protocols
  • Variety of dedicated specialty tests: Stress testing, Venous Reflux, MVO/SCV, Thoracic Outlet Syndrome, Palmar Arch Test, and more
  • Advanced side-to-side and ipsilateral segmental blood pressure comparison charts
  • One key operation for simplified, automatic, and rapid examinations
  • Interactive screens
  • Unlimited workstations
  • Configurable reports
  • Network support: DICOM, HL7, GDT, SQL
  • Statistical analysis
  • Language support
  • Variety of export formats
  • Large touch screen display
  • Dedicated remote control and foot switch

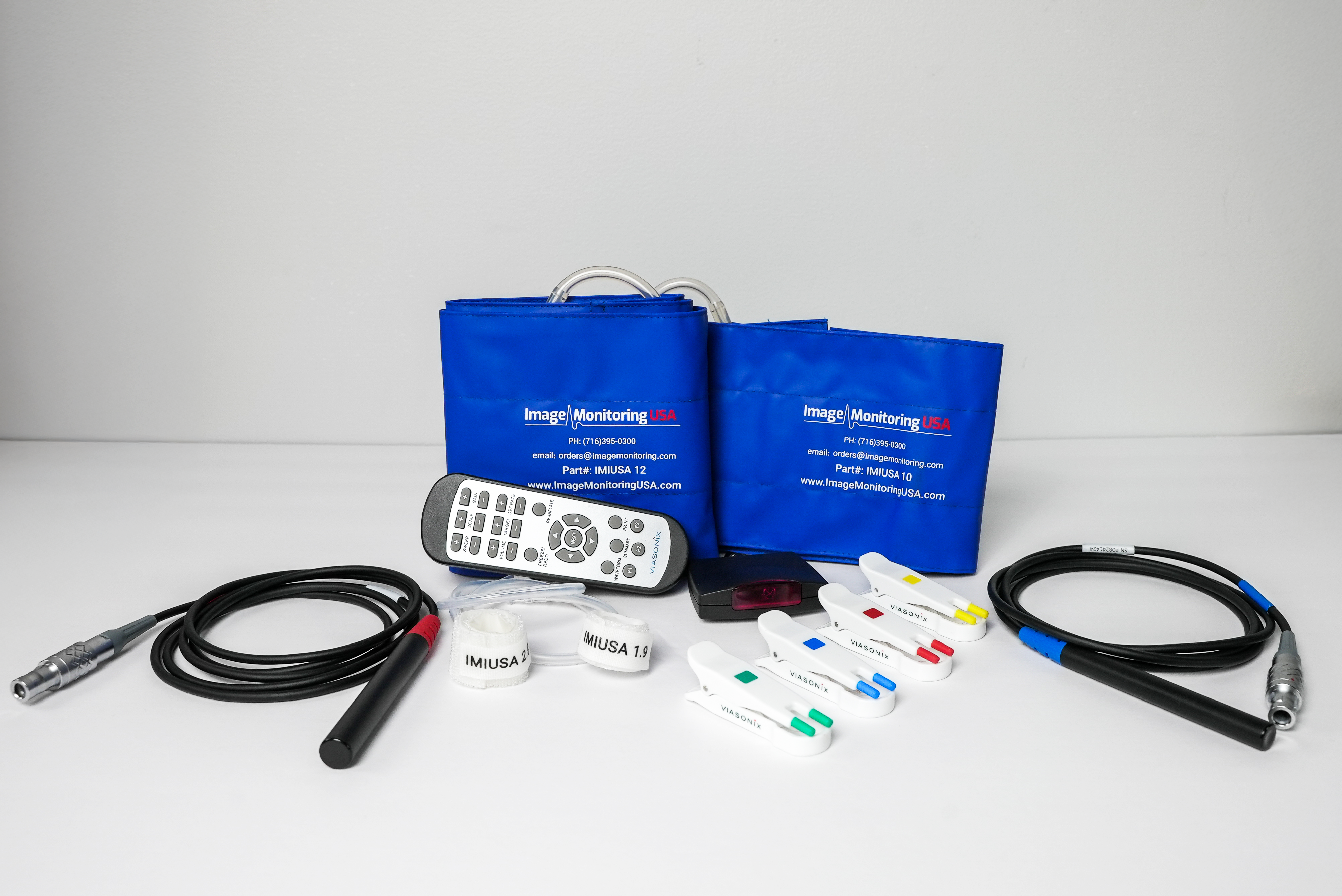

Falcon Pro Unit

IMIUSA Falcon Quad Selected Features

The IMIUSA FALCON QUAD supports numerous standard and new unique features for the benefit of the medical staff and patients alike:

  • Simultaneous measurements of up to 4 PVR channels
  • Quality control of blood pressure measurements
  • Simultaneous measurements of up to 4 PPG channels
  • Simultaneous ABI measurements
  • Simultaneous Raynaud’s Diagnosis
  • 10 MHz Doppler probe
  • Enhanced measurements of blood pressure with PPG
  • Integrated temperature sensor, ideal for diagnosis of the Raynaud’s syndrome
  • Unlimited user defined protocols
  • Variety of dedicated specialty tests: Stress testing, Venous Reflux, MVO/SCV, Thoracic Outlet Syndrome, Palmar Arch Test, and more
  • Advanced side-to-side and ipsillateral segmental blood pressure comparison charts
  • One key operation for simplified automatic and rapid examinations
  • Interactive screens
  • Unlimited workstations
  • Configurable reports
  • Network support: DICOM, HL7, GDT, SQL
  • Statistical analysis
  • Language support
  • Variety of export formats
  • Large touch screen display
  • Dedicated remote control and foot switch

FALCON PRO APPLICATIONS FOR VASCULAR DIAGNOSIS

Imagine what you would like to have in your ideal PVD system and discover it in the FALCON!

Ankle Brachial Index

ABI, the Ankle Brachial Index, is the most popular application for fast and simple screening of a physiological vascular pathology. With this test pressure cuffs are placed on the 2 ankles and on 1 or 2 brachial segments.

The IMUSA FALCON/Pro allows to perform the ABI test with either Doppler or PPG sensors. In addition, the Falcon allows to perform simultaneous measurements in all sites under certain conditions for rapid measurements.

Prior to segmental cuff inflation, a reference signal is identified distal to the cuff location. When the cuff pressure exceeds the systolic pressure, the reference signal waveforms should disappear. Then, the cuff pressure is slowly deflated at constant bleeding rate, and the first occurrence of the return of the reference signal waveform marks the systolic pressure.

The ABI is defined as the ratio of the higher brachial pressure to each of the ankle pressures. A ratio of around 1 is considered normal, while lower values indicate various levels of significant peripheral arterial disease (PAD) according to international guidelines.

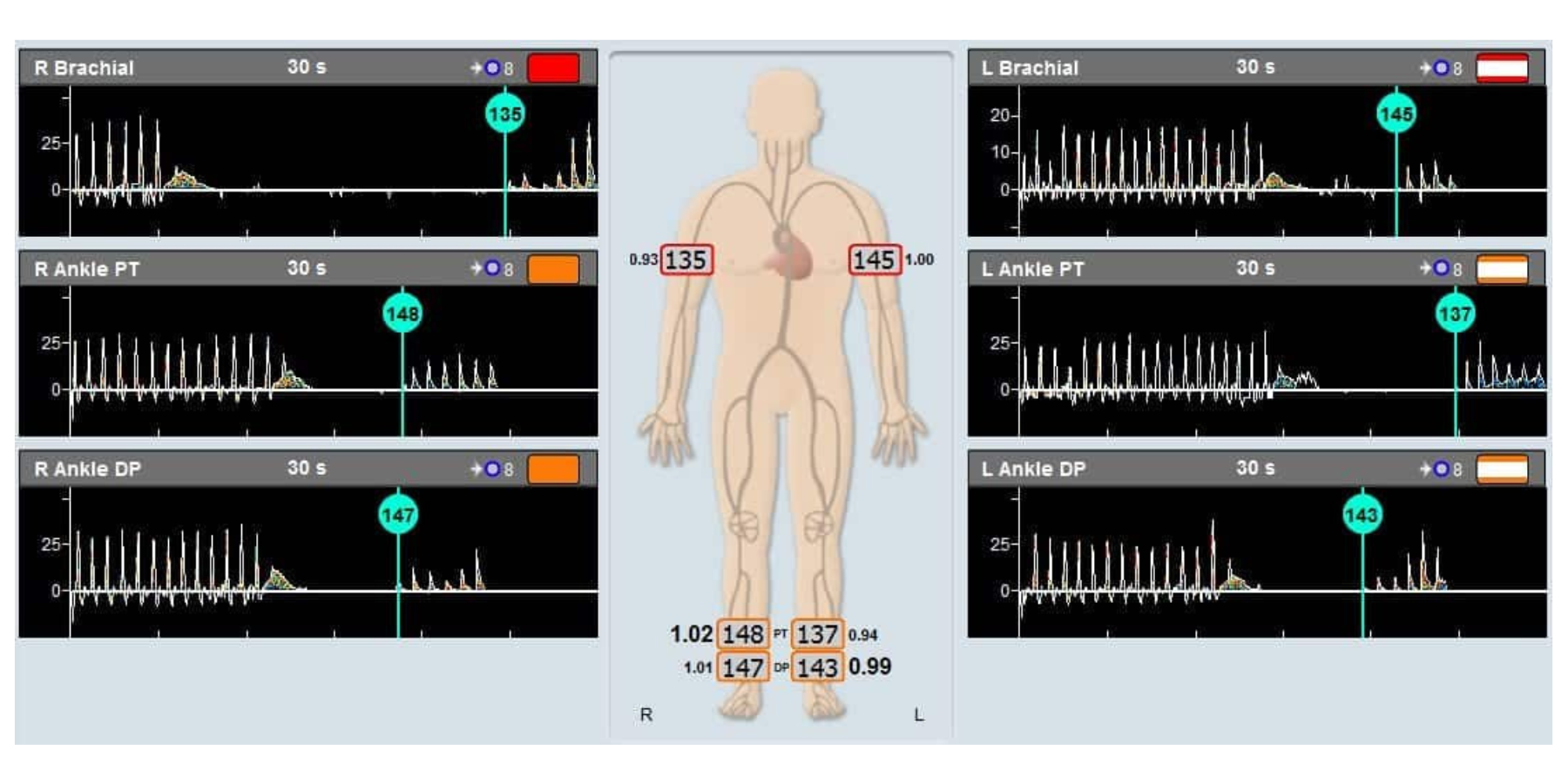

IMUSA Falcon PVD Clinical Applications – Ankle Brachial Index

Above is an example of a ABI test performed on a patient using IMUSA FALCON/Pro. The sensor used in this case is 8 MHz Doppler probe.

Segmental Blood Pressures

The Segmental Blood Pressure (SBP) tests require the placement of dedicated pressure cuffs on the various limb segments, which typically include the 2 brachial segments, the thighs (some protocols divide the thigh into 2 separate segments), the segment below the knees, the ankles and the toes.

Additional segments can be measured, such as the digits for diagnosis of the Raynaud’s Syndrome.

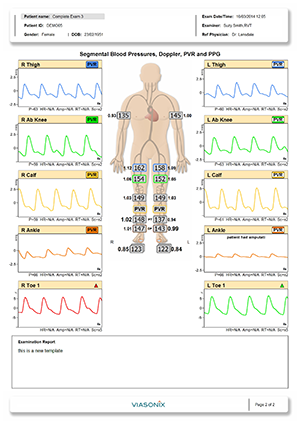

IMUSA Falcon PVD – Segmental Blood Pressures

Prior to segmental cuff inflation, a reference signal is identified distal to the cuff location. This reference signal is typically a CW Doppler measurement or a PPG (Photo-Plethysmograph, used for the digits and toes).

Above is an example of a SBP measurement taken from IMUSA FALCON/Pro system using 8 MHz CW Doppler probe.

When the cuff pressure exceeds the systolic pressure, the reference signal waveforms should disappear. Then, the cuff pressure is slowly deflated at constant bleeding rate, and the first occurrence of the return of the reference signal waveform marks the systolic pressure.

The clinician is normally interested in the ratio of the ankle systolic pressure to the brachial pressure (ABI – Ankle Brachial Index), or in significant pressure differences either in sequential segments or side-to-side differences for the same segment.

Doppler Measurements

Peripheral vascular Doppler measurements are normally performed using CW (Continuous Wave) Doppler probes.

Different Probe frequencies are used depending on the target vessels: 4 or 8 MHz are used for larger and deeper vessels such as the Carotid, Femoral or Popliteal arteries, and higher 8 or 10 MHz are used for the smaller and shallower vessels such as the Dorsalis Pedis or Tibial arteries.

The main objective is to qualitatively examine the waveform shapes: a normal peripheral artery (not in the carotids) will show 3 phases during a cardiac cycle, a prominent early systolic forward flow, a late systolic reverse flow, followed by a small component of forward flow again. This signifies a healthy elastic artery. As the vessel becomes less elastic (for example due to diabetes), the third and/or second phase will disappear.

In addition, significantly high velocities may indicate the presence of a stenosis or some other obstruction to the blood flow.

Pulse Volume Recording

The Pulse Volume Recording (PVR) test is a pneumo-plethysmographic test used for detection of the segmental volume changes in the limb which result from the flowing blood, as a function of the cardiac cycle.

Similar to the Segmental Blood Pressure (SBP) measurements, dedicated pressure cuffs are placed around all limb segments prior to initiating the test.

The cuffs are then inflated to a pressure that would occlude the venous return, yet will maintain the arterial flow un-obstructed. This pressure is typically 65 mmHg.

Once the cuff pressure is stabilized, the waveform signals which reflect the segmental volume changes can be recorded. The clinicians are normally interested in the qualitative shape of the waveforms: a “normal” PVR consists of a rapid systolic upstroke and a rapid downstroke with a prominent dicrotic notch.

With increasing arterial disease the PVR waveform becomes attenuated, the upstrokes and downstrokes are less prominent and the PVR amplitude decreases and ultimately becomes flat.

Venous Reflux

The Venous Reflux test is used to determine the competence of the superficial venous valves in the calves of the legs. This test is performed with a DC PPG sensor.

When performing Venous Reflux test, the patient is requested to sit upright with the legs not touching the ground. A Photo-plethysmograph (PPG) sensor is attached to the leg above the ankle in the region of the posterior tibial artery. When the DC signal reaches a steady state baseline, the patient is requested to perform multiple leg dorsiflexions which result in “pumping” of all of the venous blood. After the dorsiflexions the patient is requested to remain still, while the PPG DC signal returns back to the initial baseline.

Optionally, the test can be repeated with a cuff wrapped around a segment on the leg (thigh, above/below knee) acting as a tourniquet.

The duration from the end of the dorsiflexions (maximal signal change) until the signal return to baseline (VRT, Venous Recovery Time) indicates the status of the valves. A slow recovery time indicates competent valves, while a fast VRT would indicate a suspicion of valvular incompetency.

Above photo: Example of a Venous Reflux specialty test performed
on a patient with IMUSA FALCON/Pro. The Venous Recovery Time (VRT)
is an index of venous valve patency. A fast recovery time such as
in this example, indicates a suspicion of valvular incompetency.

Photo-Plethysmography Readings

The Photo-plethysmograph (PPG) test detects changes in segmental blood volume, in a similar manner to the Pulse Volume Recording (PVR) test. The PPG technology, however, is different than the pressure-sensor based PVR technology.

With PPG, infra-red signals are transmitted to the skin and reflected back to the sensor, therefore PPG waveforms reflect local and rather shallow skin variations in blood flow.

Typical PPG measurement sites are the toes and digits, and interpretation of the signals is in a similar manner to the interpretation of the PVR waveforms.

In order to differentiate different vascular disorders, or to determine the functional severity of a stenosis, some of the tests described above are repeated after induced stress.

Typically, the patient will be requested to perform treadmill or similar activity, under the supervision of the examiner.

Most of the time the stress testing will include Segmental Blood Pressures, particularly at the ankles and brachials, and sometimes also Pulse Volume Recording (PVR) and CW Doppler measurements.

Segmental pressures are often measured at different post-stress times to determine also the recovery time from the stress effects. The clinician is particularly interested in identifying significant variants from the resting pressure indices and specifically changes in the Ankle-to-Brachial Index (ABI).

On the left side is an example of a Segmental Blood Pressure measurement with induced stress (exercise in this case) performed using IMUSA FALCON Pro. The table shows blood pressure measurements in pre-exercise and post-exercise conditions. It is common to take multiple measurements (cycles) in timed intervals after performing the induced stress. The stress graph on the left side shows the recovery of each measured segment starting with pre-stress conditions until the last post-stress cycle.

The Thoracic Outlet Syndrome test is conducted in order to determine the vascular role when the patient’s symptoms are indicative of perfusion loss or neurogenic causes.

This procedure tests for intermittent perfusion loss, particularly in the arms and hands.

Either Doppler, PVR or PPG sensors detect normal resting waveforms in the digits or hands and then the patient is instructed through a sequence of positions such as: Hands-up Test, Adson or Scalene Maneuver, Costoclavicular Maneuver, Allen Test, and Provocative Elevation Test.

The clinician tries to identify a position which significantly reduces perfusion to determine whether the symptoms originate from vascular causes.

Thoracic Outlet Syndrome

Raynaud's Syndrome

Raynaud’s disease is a rare disorder of the blood vessels, usually in the fingers and toes. It causes the blood vessels to narrow when you are cold or feeling stressed.

When this happens, blood can’t get to the surface of the skin and the affected areas turn white and blue. When the blood flow returns, the skin turns red and throbs or tingles. In severe cases, loss of blood flow can cause sores or tissue death.

Primary Raynaud’s happens on its own. The cause is not known. There is also secondary Raynaud’s, which is caused by injuries, other diseases, or certain medicines.

The test is typically performed with PPG sensors attached to fingers as well as pressure cuffs in some cases for blood pressure measurement of each finger. PPG pulse is taken simultaneously from each finger at rest and after cold immersion.

An immediate measurement after cold immersion is critical so that the effect of the cold immersion is not lost. Therefore, a system such as the IMUSA FALCON Pro is recommended for Raynaud’s Syndrome test due to its ability to measure all 5 fingers simultaneously, immediately after cold immersion.

The MVO/SVC test determines the Maximum Venous Outflow (MVO) and the Segmental Venous Capacitance (SVC).

The patient lies in a supine position with the legs slightly elevated. A venous occluding cuff is placed on the thigh and a Pulse Volume Recording (PVR) pressure cuff is placed on the calve.

Initially, the cuff acting as a sensor is measured and a baseline is determined. Then the thigh cuff is inflated to occlude the venous return (around 60 mmHg) and the changes in the sensor signal are recorded. Once a plateau is reached, the occluding cuff is rapidly deflated. The sensor signal also quickly returns back to the initial baseline. The clinician then determines MVO and SVC based on the sensor signal to determine venous functionality.

MVO/SVC Determination

Above is an example of a Bilateral Maximum Venous Outflow (MVO)/Segmental Venous Capacitance (SVC) specialty test measured with IMUSA FALCON Pro. Both legs were measured simultaneously. The graphs above show the complete measurements and the graphs below present a zoom-in on the deflation part (blue rectangle). The resulted MVO/SVC ratio is displayed on the schematic picture.

Reactive Hyperemia

The Reactive Hyperemia test is allowed only in certain countries.

Stress testing is frequently used in peripheral vascular diagnosis to differentiate between different vascular disorders, or to determine the functional severity of an arterial stenosis. Systolic pressures are measured before and after inducing vascular stress. While typically the patient is asked to perform a physical exercise such as exercise on a treadmill, sometimes the patients have difficulties in performing exercise.

In special cases, the reactive hyperemia test (RH) can replace the standard exercise tests and induce vascular stress. RH requires to inflate a pressure cuff in order to occlude the blood flow to the limb or segment of interest for up to several minutes, and then rapidly releasing the cuff pressure in order to generate the hyperemic effect.

It is crucial that a professional examiner will be present near the patient at all time, and immediately deflate the pressure cuffs when necessary.

Penile function or impotence test is used for determination of whether penile function disorders are of vascular nature.

The IMUSA FALCON Pro allows to use a variety of tests, including the simultaneous combination of different tests. Such tests include Doppler arterial measurements in the penile vessels, blood pressure measurements with a penile pressure cuff, and PVR or PPG waveform measurements.

The results of such tests can either identify a penile vascular problem, or eliminate vascular issues as the cause of impotence.

The Palmar Arch Test (PAT) is a specialty test performed to evaluate the patency of the Palmar arch in the hand prior to radial or ulnar artery harvesting in artery bypass procedures or before the surgical creation of an upper extremity hemodialysis fistula or graft.

Typically, 2 PPG sensors (photo-plethysmograph) are placed on the two extreme digits (digit 1 and digit 5). The Palmar Arch Test protocol begins by measuring the resting PPG waveforms, then measuring the waveforms after selected compressions (compression of the radial artery, ulnar artery, or both) and finally measuring the waveforms after the release of the selected compression.

Compression is typically performed by manually compressing the selected artery or arteries. This procedure allows the examiner to evaluate whether the compression results in impeded or loss of blood flow to parts of the hand. Thus, significant reduction or loss of blood flow to areas of the hand suggests that removing that particular artery may jeopardize hand performance if the artery is removed.

A system such as IMUSA FALCON Pro is recommended for PAT and AV Fistula test as it allows placing up to 5 PPG sensors on all five digits and measure simultaneously. Clear markers in the waveforms indicate when artery compression begins, and when the compression is released.

Palmar Arch Test and AV Fistula

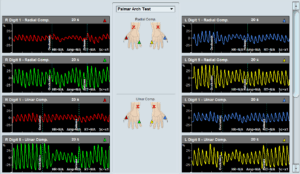

Example of a Palmar Arch Test specialty test performed
on a patient using Viasonix FALCON/Pro. First, the Radial artery was compressed
on two extreme digits and then the Ulnar artery was compressed on the same digits.

Extracranial Examination

Extracranial examination is performed with Doppler measurements in the carotid and other extracranial vessels. These measurements focus on the measurement of peak and mean blood flow velocities in order to identify a vascular obstruction to flow, such as an arterial stenosis.

The common blood vessels during extracranial evaluation are the common, internal and external carotid arteries, as well as the subclavian artery. A measurement at the location of a stenosis will result in increased blood flow velocities.

FALCON PRO ENHANCED FEATURES

Enhanced Measurements

• Clear display of PPG waveforms
• Quick Zoom in and out
• Systolic pressure verification with average perfusion signal

Blood Pressure Measurements

• Simple workflow
• Automatic save and automatic cuff inflation
• Supports both Doppler and PPG (Photoplethysmograph)
• Complete replay with audible Doppler sound
• Review and modify at any time!

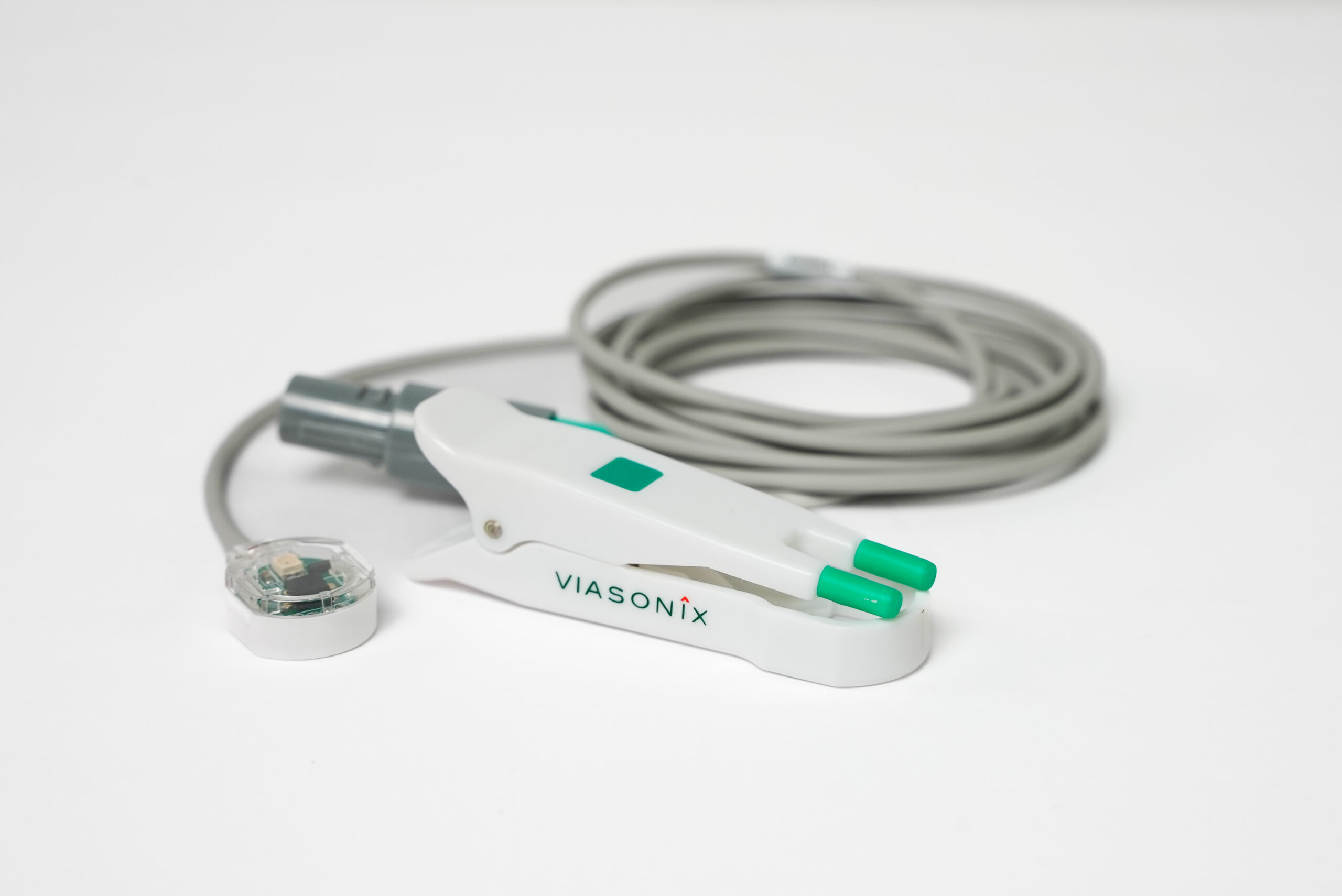

Disk PPG Sensors

• Phasic and average waveform display
• Attachment to the skin with dedicated stickers
• Ideal for venous studies
• Color coded sensors

Independent Pressure Channels

• Flexible configuration according to your needs
• Save time by measuring simultaneously
• Color coded channels
• Robust and reliable

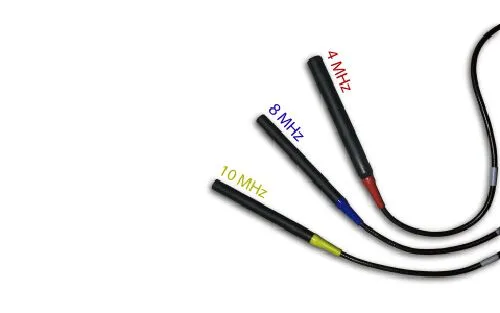

Wide Probe Selection

• High quality 4 MHz and 8 MHz probes for standard use
• Unique 10 MHz probe Ideal for small peripheral blood vessels
• Complete high resolution spectral analysis
• Color coded probes

Simultaneous ABI Measurement

• Simultaneous measurement of selected segments
• Automatic save and cuff inflation
• Automatic detection of systolic pressures
• Display of continued site perfusion

About PVR Machine

With pulse volume recording, similar to the Segmental Blood Pressure (SBP) measurements, dedicated pressure cuffs are wrapped around the target limb segments prior to initiating the test. These sites typically include the thigh, above the knee, below the knee, and ankle on each leg. The cuffs are then inflated using a PVR machine to a pressure that would occlude the venous return yet will still maintain the arterial flow un-obstructed. This target pressure is typically 65 mmHg and is kept constant throughout the PVR measurement.

Once the cuff pressure is stabilized, the Pulse Volume Recording waveform is generated based on the pressure changes in the air inside the pressure cuff as the result of minute limb circumference changes. Thus, the elasticity or stiffness of the arterial circulation in the legs will determine, in part, the shape of the PVR waves. This test is mostly qualitative in nature, and the focus is on the shape of the PVR obtained waveforms. In just a few minutes, regulated, sensitive, and reproducible pulse volume measurements can be made using our Falcon peripheral vascular testing machine

FAQS:

It is checked by monitoring the ankle-brachial index using a Falcon ABI machine. Ankle Brachial Index (ABI) test assists in the early detection of Peripheral Arterial Disease (PAD) and provides information about its functional severity.

Ankle-brachial index (ABI) a non-invasive test is used to monitor ankle and arm blood pressure. The doctor then compares this reading to check for PVD.

An ABI machine uses a non-invasive technique to check for and monitor peripheral artery disease. The Falcon is considered to be the best ankle brachial index machine as it allows very simple and fast diagnosis of ABI. Simply place 4 color-coded pressure cuffs on each of the right/left brachial and ankle sites, select the ABI protocol, and you are ready to go. The ABI test can be completed in just a couple of minutes.

Peripheral vascular diseases are commonly screened by measuring ABI.

Computed tomography (CT) angiography is the gold standard.
