Dolphin Accessories
Configure the Dolphin for Your Clinical Requirements With a Wide Range of Accessories
Configure your Dolphin TCD for diagnostic exams, long-term monitoring or emboli detection with genuine Viasonix accessories, all supplied and supported by Image Monitoring USA. You can choose from TCD transducers in several frequencies, comfortable monitoring headframes for hands-free bilateral recordings, and other accessories that keep your system ready in the neuro ICU, the stroke unit or the OR. Replacement parts and spares are kept in stock so your studies aren’t held up.

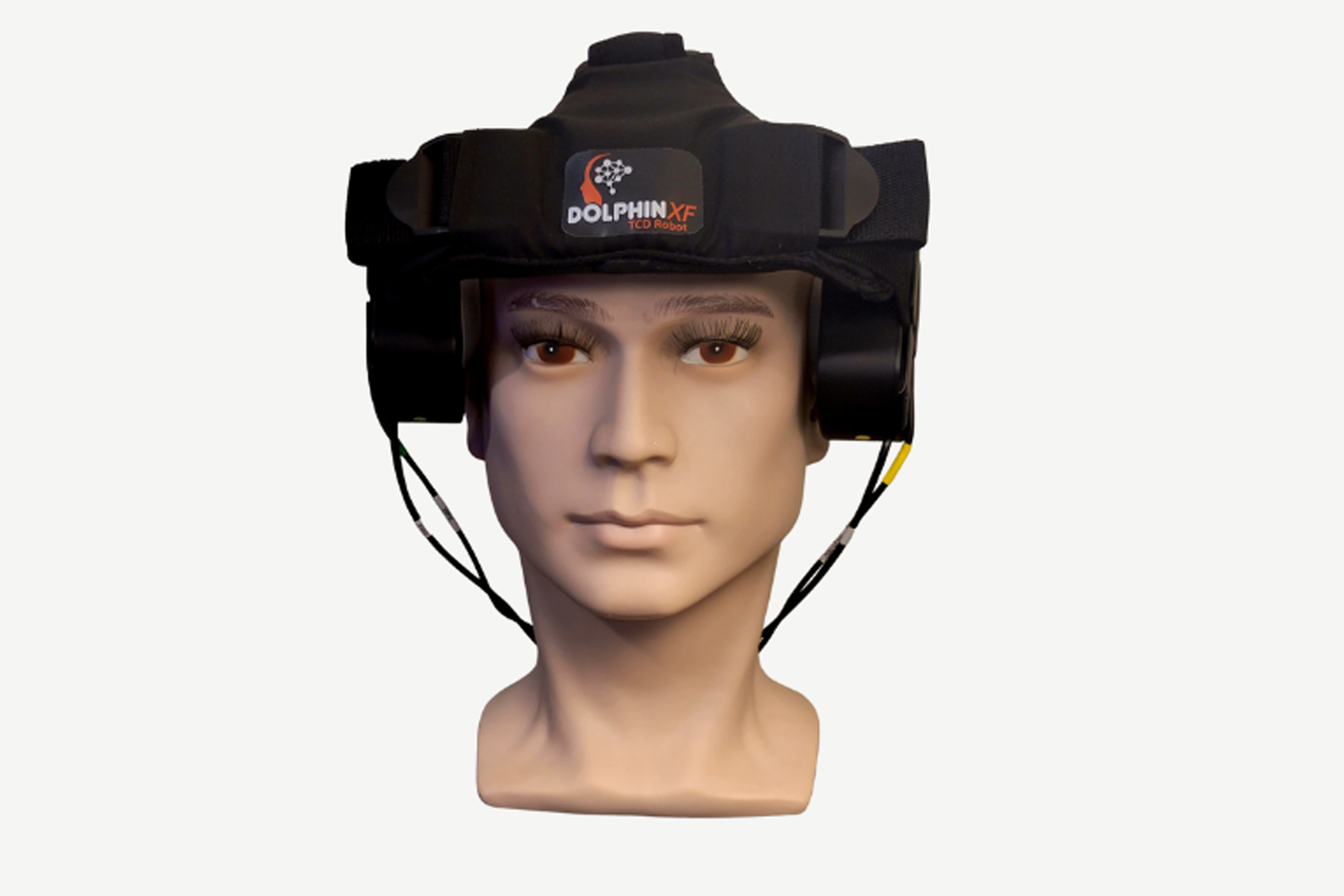

Dolphin/XF
- Anesthesia and the Operating Room (OR),
- HITS detection for bilateral monitoring
- Vasomotor Reactivity (VMR), Breath Holding (BHI) or PFO testing for short term monitoring
- Use in ICU
- With SAH or Stroke patients where cerebral blood flow monitoring is of particular importance.

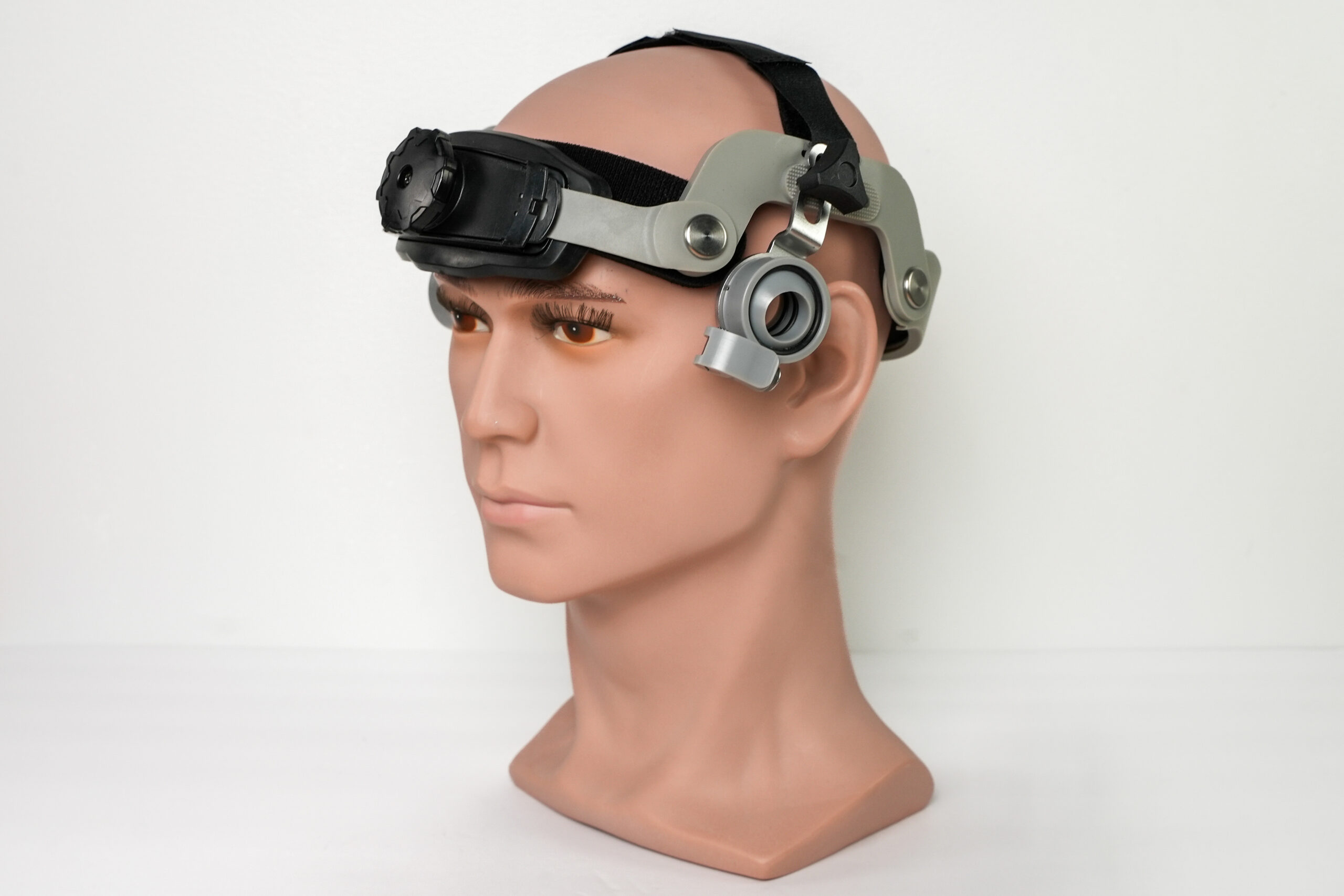

Continuous Monitoring
- Comfortable Headset
- Replay of entire Doppler spectrum and audio
- Parameters trends graph
- Alerts, automatic & predefined markers

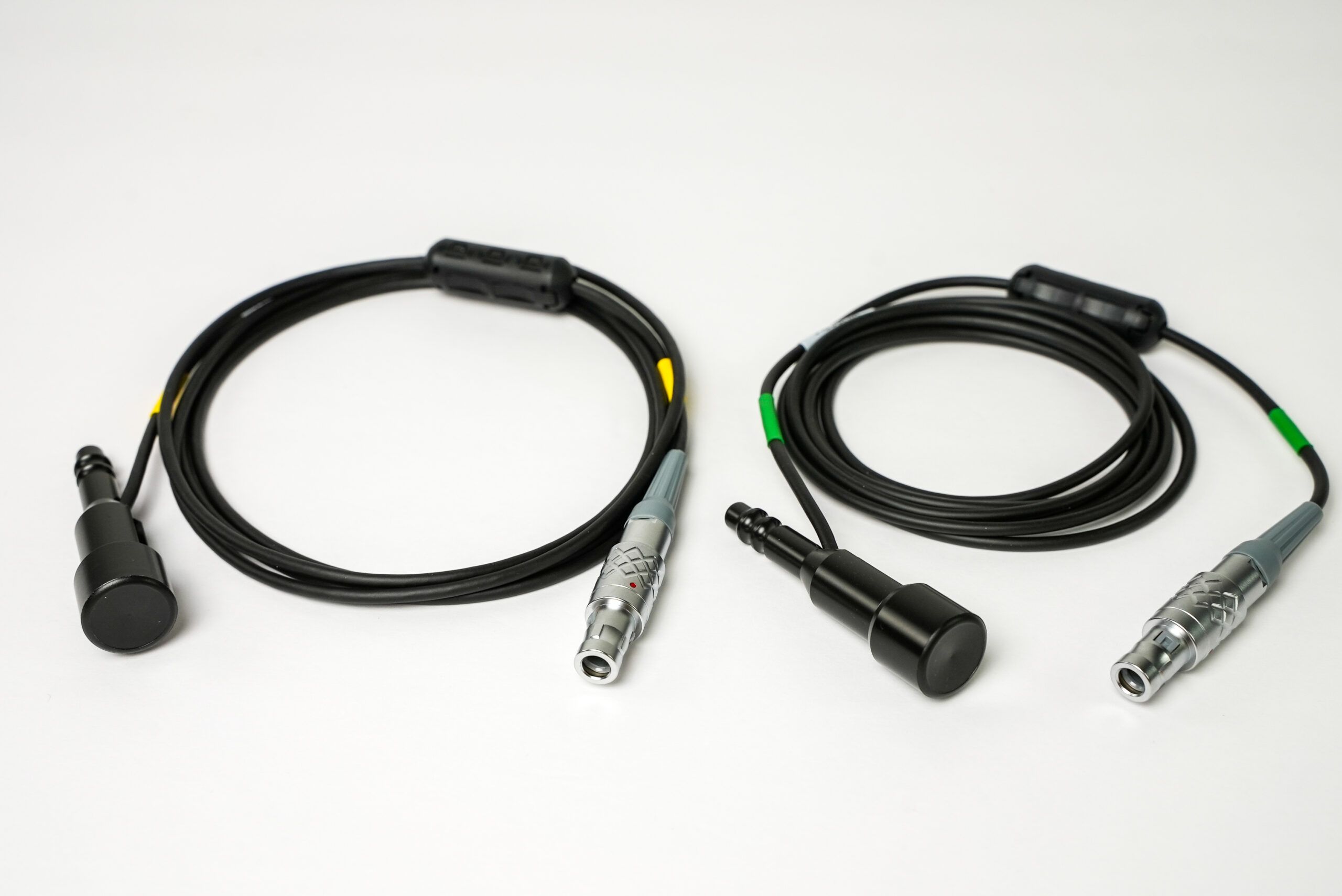

Monitoring Probes
- 2 Mhz Probes
- Bialteral
- High resolution color M Mode
- 2 meter and 5 meter length cable options

Wide Probe Selection
- 1.6 MHz, 2 MHz, 4 MHz and 8 MHz probes
- Bialteral
- High resolution color M Mode

Remote Control
- A selection of wired and wireless remote control
- Keep your focus on the patient with a dedicated foot switch
- Configurable buttons on remote and foot switch according to required functions
- Available as a wired remote
Dolphin Accessories Part Numbers
| Part# | Description |
|---|---|
| PVC0160 | 2 MHz Probe |
| PVC0161-G | 2 MHz Monitoring Probe Green – 2m Cable |
| PVC0161-Y | 2 MHz Monitoring Probe Yellow – 2m Cable |
| PVC0161-G-5m | 2 MHz Monitoring Probe Green – 5m Cable |
| PVC0161-Y-5m | 2 MHz Monitoring Probe Yellow – 5m Cable |
| Part# | Description |
|---|---|
| PVC0221 | Dolphin Wired Remote Control |
| PVC0190 | Dolphin Wireless Remote Control |
| PVC0191 | Dolphin Wireless Remote Control Receiver |
| PVB0076 | 3 Pedal Foot Switch |
| Part# | Description |
|---|---|
| PVC0202 | Dolphin Monitoring Headset includes quick locks- monitoring probes not included |
| PVC0283-50 | Pads for Dolphin Monitoring Headset (Pack of 50) |
| PVC0202-24 | Quick lock – Left side |
| PVC0202-25 | Quick lock – Right side |
| VelcroBand | PVC0202-19 Internal Velcro Back-band PVC0202-20 External Velcro Back-band |
| PVA0386 | Screw M6x12, (5mm thin shaft) A2, Knob |
| Part# | Description |
|---|---|
| PVC0263-Y | Dolphin/XF Robot Unit Yellow |
| PVC0263-G | Dolphin/XF Robot Unit Green |
| PVC0308 | Dolphin/XF Robot Monitoring Headset |
| PVC0310 | Dolphin/XF Robot Casing |
| PVC0309-50 | Pads for Dolphin/XF Robot Monitoring Headset (Pack of 50) |
| PVC0264-8-100 | Dolphin/XF Robot Disposable Gel Rubber (Pack of 100) |
| PVC0314-1 | Disposable XF Headset |
| PVC0314-5 | Disposable XF Headset – Pack of 5 |
| PVC0314-50 | Disposable XF Headset – Box of 50 |
| Part# | Description |
|---|---|
| PVC0249 | Dolphin External Channels Connection Box |
| PVB0107 | Replacement Battery for Dolphin/MAX |
| PVA0396 | Stand for Dolphin/4D and Dolphin/MAX |
| PVC0167 | Probe Holder for Dolphin/4D and Dolphin/MAX Back Panel |
| PVB0093 | Dolphin/IQ External Medical Power Supply |
